Harley Davidson Clutch Friction Plate Kit- Kevlar >

Part# 302-30-10013

Notes:

Consists of 9 plates.

Harley Davidson Clutch Friction Plate Kit- Carbon Fiber >

Part# 302-30-20013

Notes:

Consists of 9 plates.

Steel Clutch Drive Plate >

Part# 401-30-063014

Quantity Required: 8
Notes:

8 required- .063" thick.

Harley Davidson Clutch Plate Kit- Carbon Fiber >

Part# 306-30-20018

Notes:

Includes 9 frictions and 8 steels.

Harley Davidson Extra Plate Clutch Kit- Kevlar >

Part# 307-30-10013

Notes:

Includes 10 frictions and 9 steels.

Harley Davidson Extra Plate Clutch Kit- Carbon Fiber >

Part# 307-30-20013

Notes:

Includes 10 frictions and 9 steels.

Diaphragm Clutch Spring >

Part# 502-00-01004

Notes:

Standard replacement spring. NOTE: Does not fit 2013-19 CVO/SE or 2015 FLHTC "L" models.

Diaphragm Clutch Spring >

Part# 502-00-01008

Notes:

Heavy duty. NOTE: Does not fit 2013-19 CVO/SE or 2015 FLHTC "L" models.

Coil Spring Conversion Kit (Cable actuated) >

Part# 511-30-10004

Notes:

Fits 1998-17 Big Twin, Twin Cam models. Converts stock diaphragm spring to six coil springs. Provides a more progressive, controllable engagement. Includes a billet aluminum pressure plate and two sets of heavy duty coil springs providing three spring pressure options. Replaces stock pressure plate/spring. Ideal for stock to heavy duty applications. Note: Does not fit 2013-17 narrow primary models.

Coil Spring Conversion Kit (for models using HD Hydraulic System) >

Part# 511-30-10904

Notes:

Fits 1998-17 Big Twin, Twin Cam models. Converts stock diaphragm spring to six coil springs. Provides a more progressive, controllable engagement. Billet pressure plate and springs included- replaces stock pressure plate/spring. Three different spring pressure options make it ideal for stock to heavy duty applications. Fits models using HD hydraulic system. Note: Does not fit 2013-17 narrow primary models.

Lock up Pressure Plate Conversion Kit- 1998-17 HD Big Twins (Cable actuated) >

Part# 618-30-23098

Notes:

Fits 1998-17 (except 2013-20 assist and slip clutch models) Harley Davidson Big Twins. Features a low profile lock-up billet pressure plate specifically designed to fit under the stock primary/derby cover. Increases the capacity of the stock clutch while keeping lever effort to a minimum. Ideal for stock to big inch motors! Bolt-on installation with no modifications required. Includes billet lock-up pressure plate, three sets of six coil springs (light, medium and heavy). Also included is a spacer for 1998-06 models and if needed to fit with an aftermarket primary cover. Installation instructions

Hydraulic Lock-up Pressure Plate Conversion Kit- 1998-17 Big Twins >

Part# 618-30-33098

Notes:

Fits 1998-17 (except 2013-19 assist an slip clutch models) Harley Davidson Big Twins with hydraulic clutch. Features a low profile lock-up billet pressure plate specifically designed to fit under the stock primary/derby cover. Increases the capacity of the stock clutch while keeping lever effort to a minimum. Ideal for stock to big inch motors! Bolt-on installation with no modifications required. Includes billet lock-up pressure plate, three sets of six coil springs (light, medium and heavy). Also included is a spacer for 1998-06 models and if needed to fit with an aftermarket primary cover. Installation instructions

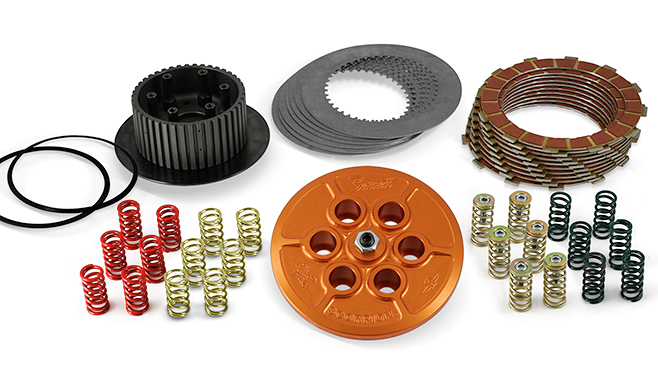

Scorpion Clutch- 2011-17 Big Twins (Twin Cam-cable acuated) >

Part# 608-30-10011

Notes:

Greatly increases clutch capacity. Provides smoother shifting and multiple spring pressure options. Ideal for stock to highly modified applications. Includes steel hub, billet pressure plate, clutch plates, and multiple spring sets. Designed to fit the stock type basket. Cable actuated. Installation instructions

Scorpion Clutch- 2011-17 Big Twins (Twin Cam)- Hydraulic >

Part# 608-30-30011

Notes:

Fits models using HD hydraulic clutch. Greatly increases clutch capacity. Provides smoother shifting and multiple spring pressure options. Ideal for stock to highly modified applications. Includes steel hub, billet pressure plate, clutch plates, and multiple spring sets. Designed to fit the stock type basket. Installation instructions

Scorpion Clutch/Bolt-On Basket- 2007-16 Big Twins/2017 Twin Cam (Cable acutated) >

Part# 698-30-40009

Notes:

This "Complete" clutch includes our Scorpion billet clutch and Scorpion billet aluminum "bolt-on" clutch basket. This basket simply bolts on to your stock ring/primary gear and is superior in quality and durability compared to the stock basket. This complete clutch comes assembled with the bearing already installed.

Scorpion Hydraulic Clutch and Bolt-On Basket- 2007-16 Big Twins/2017 Twin Cam >

Part# 698-30-60009

Notes:

This "Complete" clutch includes our Scorpion Hydraulic billet clutch and Scorpion billet aluminum "bolt-on" clutch basket. This basket simply bolts on to your stock ring/primary gear and is superior in quality and durability compared to the stock basket. This complete clutch comes assembled with the bearing already installed.

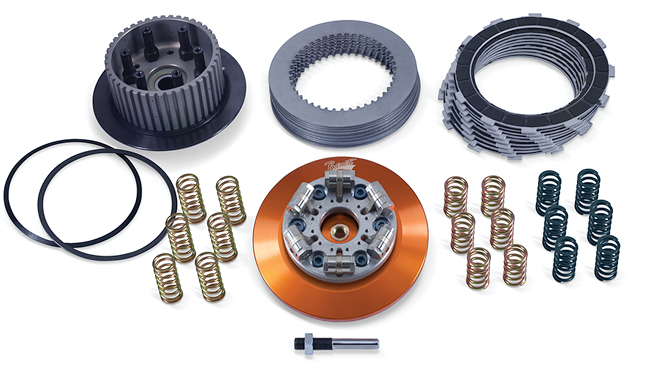

Scorpion Low Profile Lock-up Clutch- 2011-17 Big Twins (Twin Cam- Cable actuated) >

Part# 608-30-23100

Notes:

Low Profile design fits under stock primary cover on all models except the 2015 FLHTCUL, FLHTCUL TL, FLHTKL Big Twins and all 2016-17 FL's. These models require derby cover spacer plate #686-30-16100 - sold separately. Installation instructions

Scorpion Low Profile Lock-up Clutch- 2011-17 Big Twins (Twin Cam)- Hydraulic >

Part# 608-30-33100

Notes:

Hydraulic- Low profile design fits under stock primary cover on most models except the 2015 FLHTCU, FHLTCUL, FLHTKL Big Twins and all 2016-17 FL's. These models require derby cover spacer #686-30-16100 - sold separately. Installation instructions

Scorpion Lock-up Pressure Plate- 2007-18 Big Twins (Cable) >

Part# 618-30-23710

Notes:

Low Profile design fits under stock primary cover. Retro-fits to all 2007-18 Big Twin Scorpion clutches.

Scorpion Lock-up Pressure Plate- 2007-18 Big Twins- Hydraulic >

Part# 618-30-33710

Notes:

Hydraulic- Low Profile design fits under stock primary cover. Retro-fits to all 2007-18 Big Twin Scorpion clutches.

• Lock up Pressure Plate Designed for Harley Davidson Big Twins
• Direct-Bolt-on
• Progressively increases pressure as RPM's increase
• Easily adjustable by adding or subtracting weights on six pressure arms (supplied)
• CNC machined, 6061-T6 billet aluminum. Perfect for large displacement, high horsepower motors!

Scorpion Lock-up Clutch/Bolt-On Basket- 2007-16 Big Twins/2017 Twin Cam (Cable actuated) >

Part# 698-30-53710

Notes:

This "Complete" clutch includes our Scorpion Low-Profile Lock-up clutch and Scorpion billet aluminum "bolt-on" clutch basket. This basket simply bolts on to your stock ring/primary gear and is superior in quality and durability compared to the stock basket. This complete kit comes assembled with the bearing already installed. NOTE: YOU MUST USE SPACER #686-30-16100 OR OUR DERBY COVER 343-30-43013/343-30-44013

Scorpion Hydraulic Lock-up Clutch and Bolt-On Basket- 2007-16 Big Twins/2017 Twin Cam >

Part# 698-30-63710

Notes:

This "Complete" clutch includes our Scorpion Hydraulic Low-Profile Lock-up clutch and Scorpion "bolt-on" billet aluminum clutch basket. This basket simply bolts on to your stock ring/primary gear and is superior in quality and durability compared to the stock clutch basket. This complete clutch comes assembled with the bearing already installed. NOTE: YOU MUST USE SPACER #686-30-16100 OR OUR DERBY COVER 343-30-43013/343-30-44013

Scorpion Clutch Plate Replacement Kit (HYD) >

Part# 306-32-10103

Notes:

Scorpion Clutch Plate Replacement Kit- Fits Hydraulic Scorpion clutches #608-30-30009, 608-30-30011, 608-30-30099, 608-30-33100, 608-30-33710 and 608-30-33806.

Scorpion Clutch Plate Replacement Kit (Wet) >

Part# 306-32-20443

Notes:

Scorpion Replacement Clutch Plate Kit for WET clutch applications. Fits Scorpion clutches #608-30-10009, 608-30-10011, 608-30-10017, 608-30-10098, 608-30-23017, 608-30-23100, 608-30-23710 and 608-30-23806.
